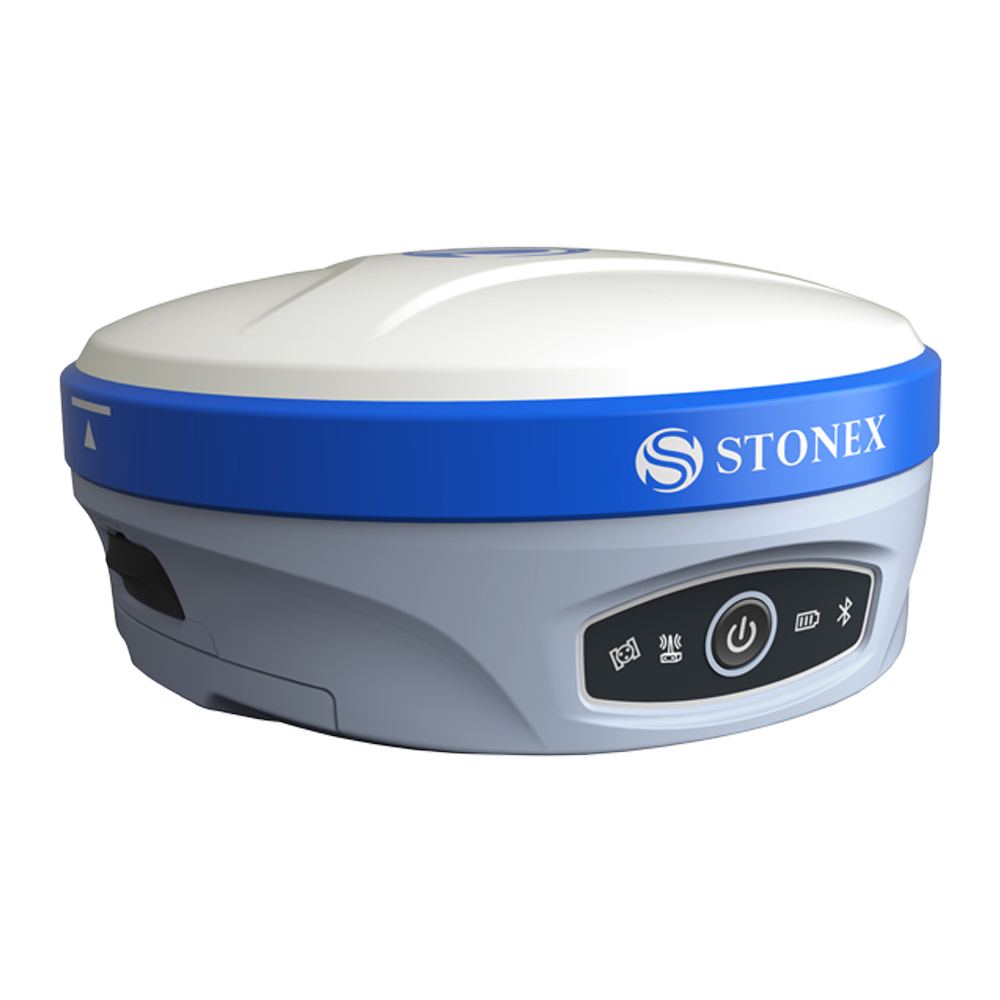

S900_side

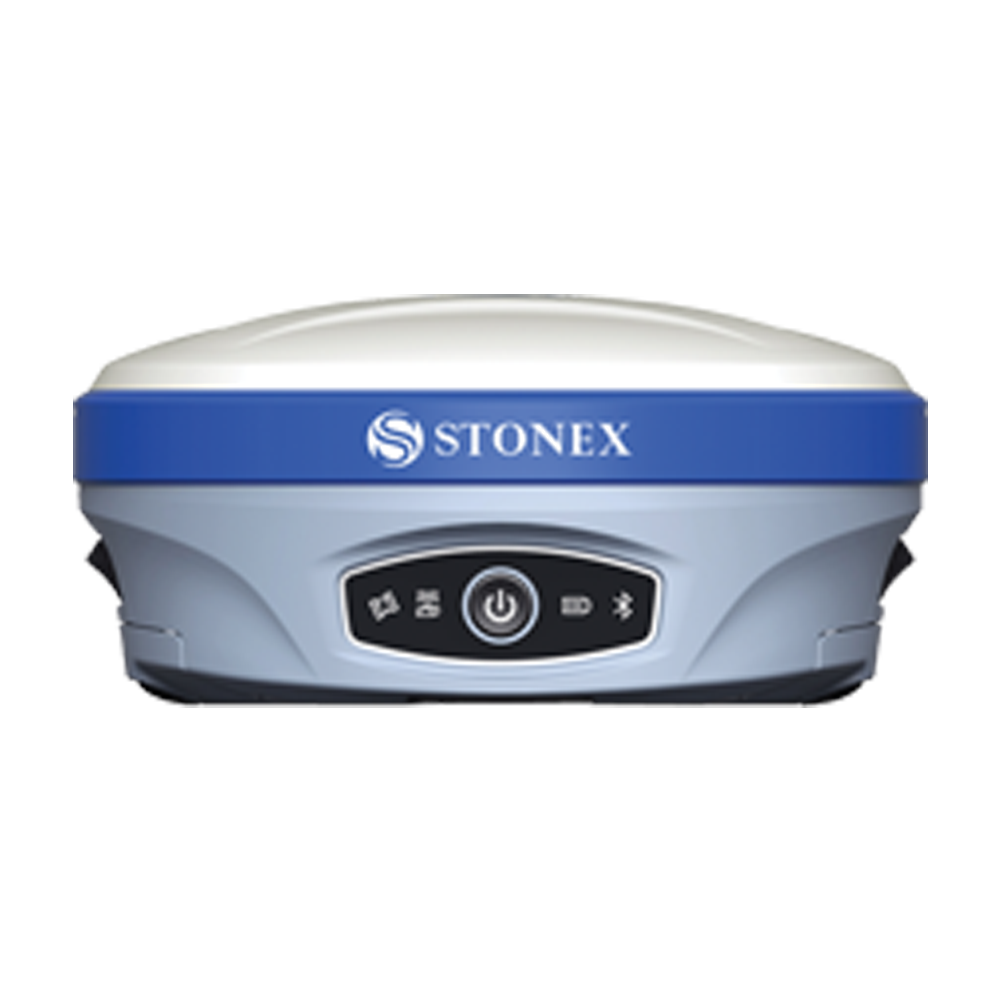

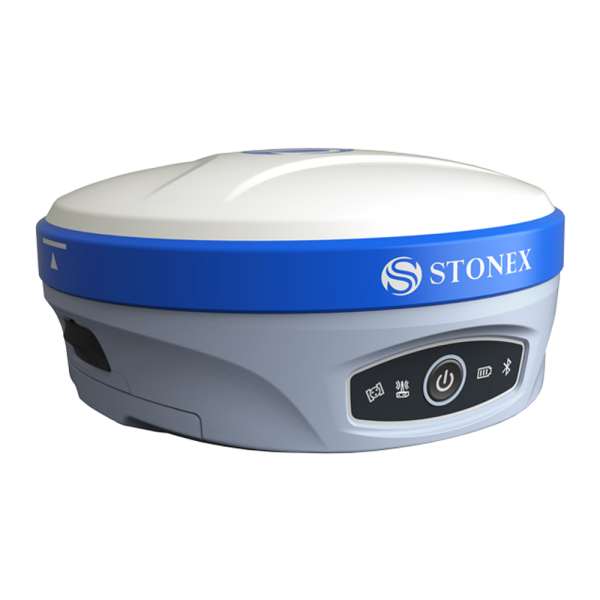

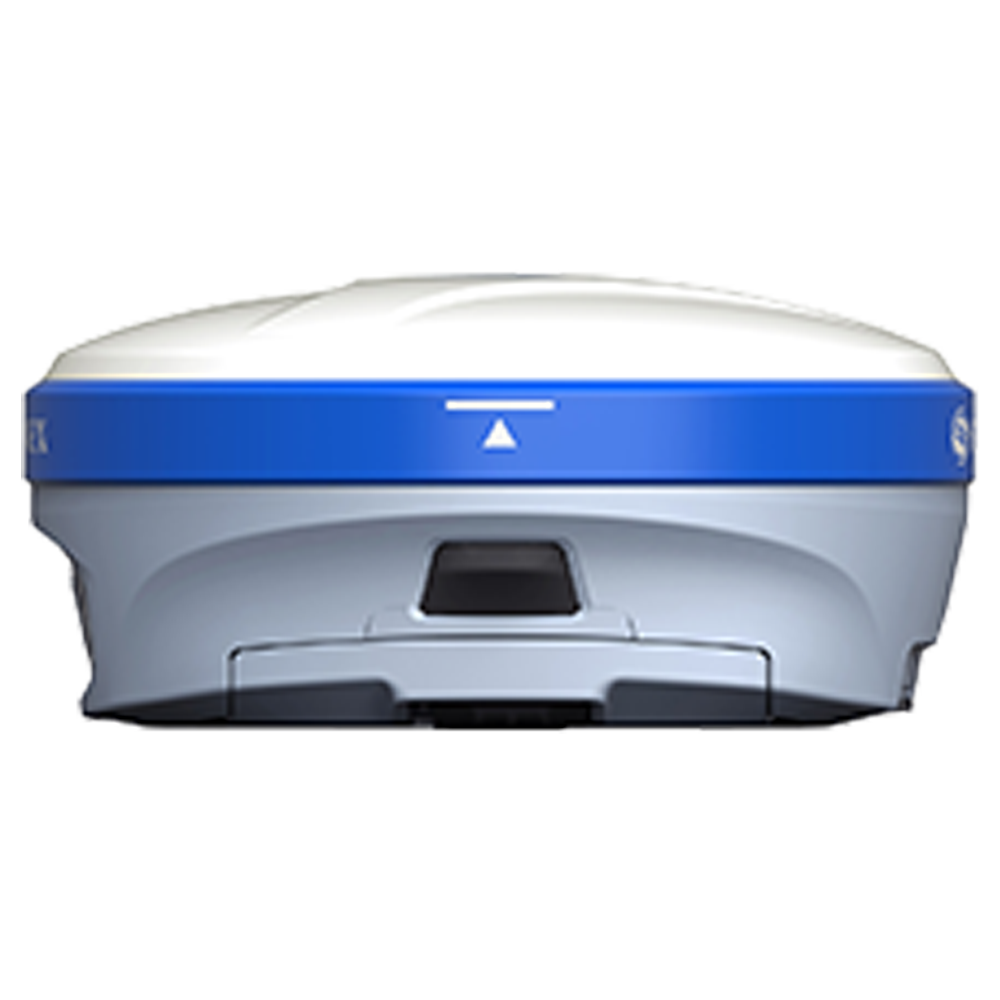

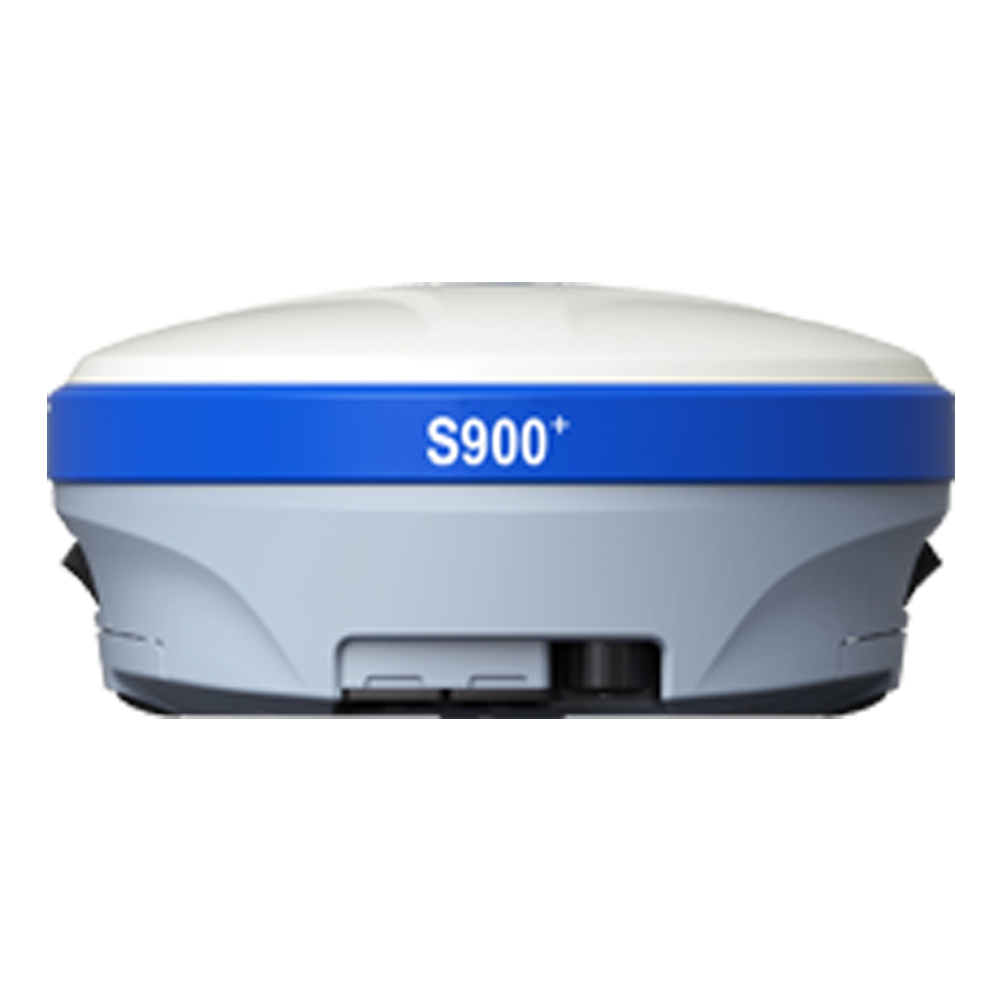

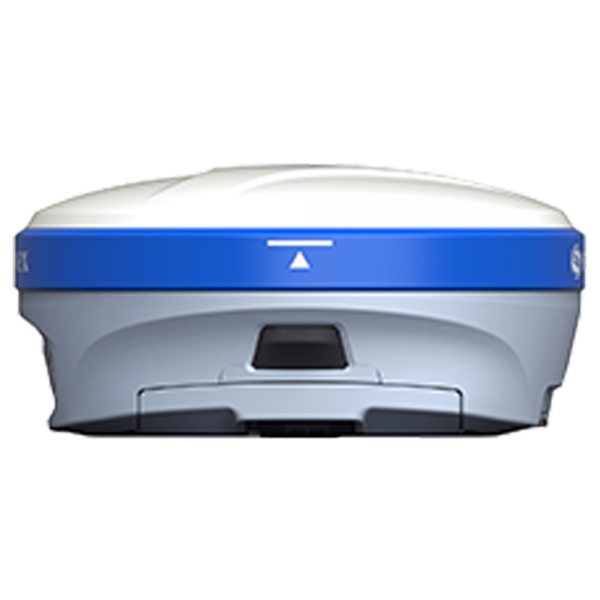

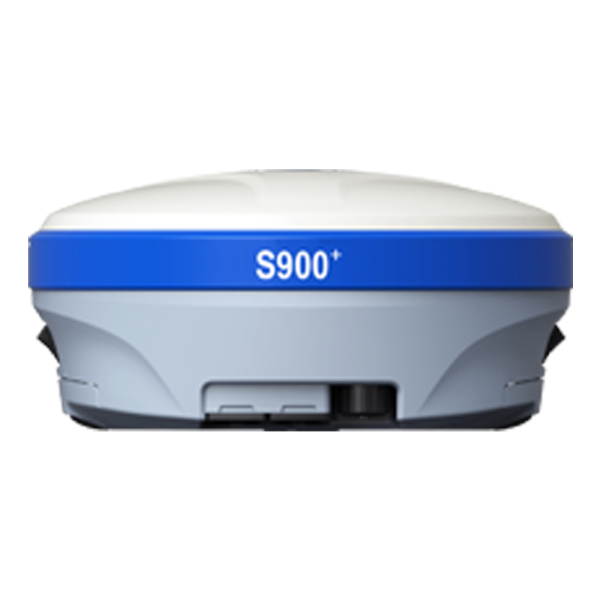

S900+ GNSS Receiver

₹0.00

Powerful Precision Performance

Stonex S900+ is equipped with a high-performance GNSS board with 1408 channels and can support multiple satellite constellations: GPS, GLONASS, BEIDOU, GALILEO and QZSS. Through the 4G GSM modem, a fast Internet connection is guaranteed for receiving correction data and carry out precise and accurate surveys.

In the incredibly compact design, Bluetooth and Wi-Fi modules allow for always reliable data flow to the controller, while the integrated UHF TX/RX radio makes the S900+ the perfect system for a GNSS Base + Rover. The S900+ is also equipped with optional IMU technology. Quick initialization, tilt up to 60° and corrected coordinates of a point with a single click.

Category:

Description

MULTI CONSTELLATION

Stonex S900+ with its 1408 channels, provides an excellent on-board real-time navigation solution with high accuracy. All GNSS signals (GPS, GLONASS, BEIDOU, GALILEO and QZSS) are included, no additional cost.

4G MODEM

S900+ has an internal 4G modem that operates with all world signals, a fast internet connection is guaranteed.

IMU (optional)

IMU technology is available for this model, with quick initialization the operator can take advantage of all the precision and efficiency of this system.

SMART BATTERIES

The dual slot for two smart hot swappable batteries gives you up to 12 hours of battery life. The power level can be checked and seen on the controller or directly on a led bar on the battery.

RADIO (optional)

An activation code can enable the integrated UHF on the S900+, with a range of up to 10 km under optimal conditions.

Specifications

RECEIVER
Satellite Signals Tracked GPS: L1 C/A, L1C, L2P, L2C, L5
GLONASS: Ll, L2, L31
BEIDOU: B1l, B2l, B3l, B1C, B2a, B2b
GALILEO: E1, E5a, E5b, E6
QZSS: L1, L2, L5
IRNSS: L51
SBAS
PPP B2b PPP1 HAS1
Channels 1408
Position Rate up to 20 HZ
Signal Reacquisition < 1 sec
RTK Initialization 2 to 4 sec
Hot Star Typically < 15 sec
Initialization Reliability > 99.9%
Internal Memory 8GB
OS Linux
Micro SD Card Expansion Slot Up to 32 GB
Tilt Sensor IMU and E-bubble (optional)3

POSITIONING4
STATIC POST PROCESSING
High Precision Static Horizontal 2.5 mm + 0.1 ppm RMS
High Precision Static Vertical 3.5 mm + 0.4 ppm RMS
Static and Fast Static Horizontal 3 mm + 0.5 ppm RMS
Static and Fast Static Vertical 5 mm + 0.5 ppm RMS
CODE DIFFERENTIAL POSITIONING
Accuracy < 0.40 m RMS
SBAS POSITIONING5
Accuracy < 0.60 m RMS
REAL TIME KINEMATIC (< 30 Km) - NETWORK RTK6
Fixed RTK Horizontal 5 mm + 0.5 ppm RMS
Fixed RTK Vertical 10 mm + 0.5 ppm RMS

INTEGRATED GNSS ANTENNA
High accuracy multi-constellation antenna, zero phase center, with internal multipath suppressive board

INTERNAL RADIO (optional)3
Type Tx – Rx
Frequency Range 410 – 470 MHZ
Channel Spacing 12.5 KHZ / 25 KHZ
Range 3-4 Km in urban environment Up to 10 Km with optimal conditions2

INTERNAL MODEM
Band LTE FDD:
Bl/B2/B3/B4/B5/B7/B8/B12/
B13/B18/B19/B20/B25/B26/B28
LTE TDD” B38/B39/B40/B41
UMTS: Bl/B2/B4/B5/B6/B8/B19
GSM: B2/B3/B5/B8
Nano SIM card

COMMUNICATION
I/O Connectors 7-pin Lemo and 5-pin Lemo interfaces. Multifunction cable with USB Interface
for PC connection
Bluetooth 2.1+EDR V5.0
Wi-Fi 802.11 b/g/n
Web UI To upgrade the software, manage the status and settings, data download, etc. via smartphone, tablet or other electronic device with Wi-Fi capability
Reference Outputs RTCM2.3, RTCM3.O, RTCM3.2 MSM, CMR, CMR+, DGPS
Navigation Outputs NMEA 0183

POWER SUPPLY
Battery 2 rechargeable and replaceable 7.2 v – 3.400 mAh Intelligent lithium batteries
Voltage > 9 to 28 V DC external power input with over-voltage protection (5-pin Lemo)
Working Time > Up to 12 hours (2 batteries hot swap)
Charge Time Typically 4 hours

PHYSICAL SPECIFICATION
Dimensions 157 mm x 76 mm
Weight 1.19 Kg (with one battery)
1.30 Kg (with two batteries)
Operating Temperature -300C to 650C (-220F to 1490)F
Storage Temperature -400C to 800C (-400F to 1760)F
Waterproof / Dustproof IP67 | IP687
Shock Resistance Designed to endure to a 2 m pole drop on hardwood floor with no damage
MIL – STD MIL-STD-810 F/H
Vibration Vibration Resistant

Datasheet

Geode works with a wide range of Windows®, Windows Mobile, and Android® devices to fit your needs exactly and is especially useful for bring-your-own-device workplaces. Take the Geode with you mounted on a pole, in a pack, or held in your hand to collect real-time sub-meter GNSS data in harsh environments, using almost any handheld device. please download Datasheet.

Download Data Sheet
